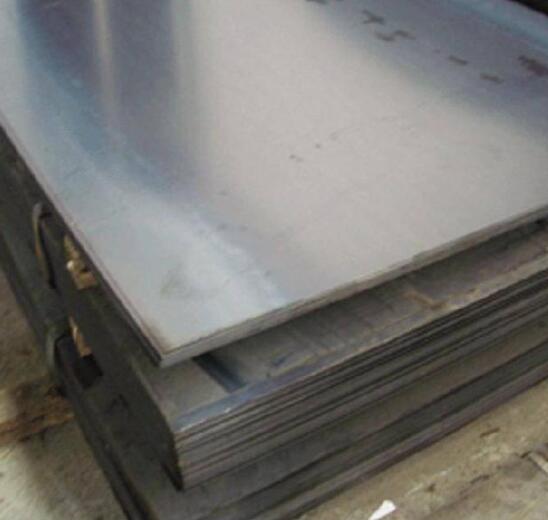

C45 Plate, C45 Carbon Steel Sheets Supplier
C45 steel plate has medium strength and is made of medium carbon steel. This material can be hardened by further heat treatment. Materials are usually distributed in untreated conditions, but can be supplied in different forms according to customer requirements. C45 steel plates are commonly used in gears, automotive components, general engineering and other applications. The width of C45 carbon steel plate ranges from 600 mm to 2500 mm, and the width can also be customized. The length of plates ranges from 600mm to 12000mm, and the thickness of plates and plates ranges from 0.2mm to 400mm.
C45 Plate Sizes And Schedule Specifications
Thickness | 2 – 600 milimeter |
Surface | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |
Width |
4200 – 11000 milimeter |
Wall Thickness | 0.2 – 400 milimeter |
Finish | Hot rolled plate (HR), Cold rolled sheet (CR) |
Surface | Black painting, varnish paint, anti rust oil, hot galvanized, cold galvanized, 3PE |
Length |
3000 – 18000 milimeter |
Thickness | 0.2 ~ 300 milimeter |
Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip etc. |
C45 Carbon Steel Sheet Chemical Composition Chart
Grade | S | C | Cr | Mn | Si | P |
---|---|---|---|---|---|---|
C45 Sheets | 0.025 max | 0.42-0.50 | 0.20-0.40 | 0.50-0.80 | 0.15-0.35 | 0.025 max |
C45 Carbon Steel Sheet Mechanical Properties Chart
Grade | Elongation |
Condition | Hardness HRC |
Yield Strength |
Quenching Temperature |
Tensile Strength |
Benda- bility |
Nominal Thickness,t 1.95mm≤t≤10.0mm |
|
---|---|---|---|---|---|---|---|---|---|
Annealed | Rolled | ||||||||
C45 Sheets | 18 30 |
Rolled Annealed Water-quenched Oil quenched |
58 55 |
460 330 |
820 860 |
750 540 2270 1980 |
Min.reco-mmended Bending radius (≤90°) |
1.0×t | 2.0 ×t |
Equivalent Of C-45 Plate
STANDARD | SAE | DIN 17200 | JIS G 4051 | BS | Steel Number | AFNOR |
---|---|---|---|---|---|---|
En 19 | C45 | C 45 | S 45 C | C45, AF65C45, 1C45 | 1.0503 | 1045 |
